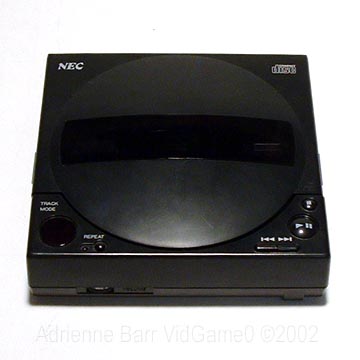

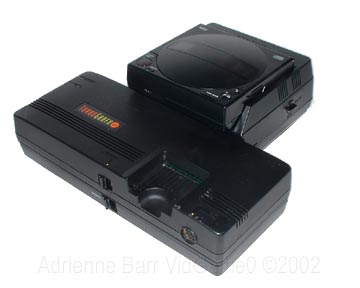

NEC Turbo Grafx 16 CD Drive (HES-CDR-01)

The NEC Turbo CD unit was released as an add on for the Turbo Grafx 16 system. The CD unit was $399.99 when it released in 1989. The system came with power supply, AV cables, docking station, and a special Hu card that let the TG 16 read games from the CD drive. It was the first consumer CD-based console. Before using your Turbo Grafx CD unit, you must format the TG 16. To do this, turn on the system and press select on your controller. Go to "Format" and press I three times. "End" then I again. To soft reset the system hold down "Run" and press "select". After saving your games to the Backup RAM, you might want to delete them to open up space. Turn on the system and press "Select". Go to "Delete" and select the files you want and press the I button. If you want to delete everything, repeat the formatting process described above when you first use your TG CD unit.

Back of the Turbo Grafx CD unit:

1. Output to Docking Station
2. Power Ouput
3. Audio Port

Front of the Turbo Grafx CD unit:

1. Volume adjustment knob

Left side of the Turbo Grafx CD unit:

1. Headphone Jack

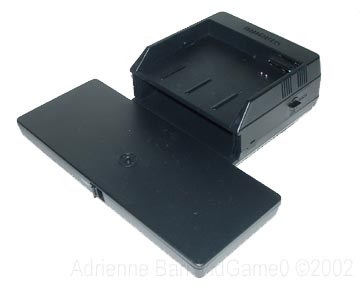

Turbo Grafx Docking station

Back of the Turbo Grafx Docking Station:

1. AV Output
2. Power Output

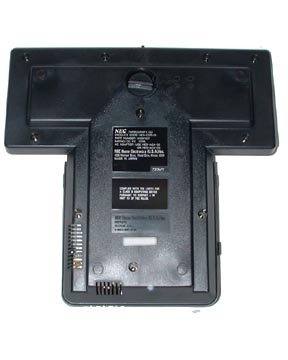

Bottom of the Turbo Grafx Docking station. Note the dial on the top: locks the Turbo Grafx 16 into place.

The ports of the Turbo Grafx Docking bay:

1. CD Port
2. TG-16 Port

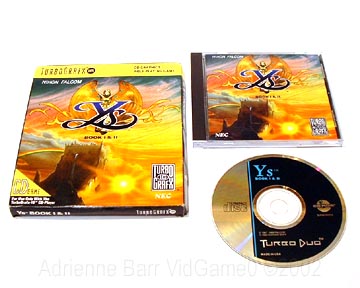

Sample packaging for the Turbo Grafx CD games.
Turbo Grafx CD System card. This is required to play any Turbo Grafx CD games using the CD and the Turbo Grafx 16.

Sample power tip of the Turbo Grafx CD:

Without TG 16: 03377077, 10.5 DC 650mA + @ -
With TG 16: 03987007, 11V 1.53A (1530mA)(HES-ACA-02 and HES-ACA-03)

+ @ -
