Panasonic FZ-10 3DO (#FZ-10)

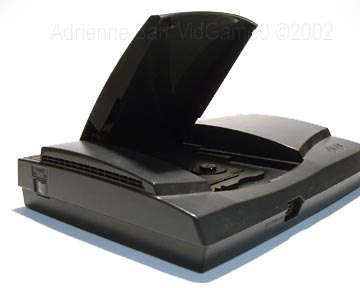

The FZ-10 was the successor to the Panasonic FZ-1 and was made as a low cost alternative. It was a top loading system instead of utilizing a disc tray. The unit contained a port for expansion and contained 32kB of battery back up for saving games. The hardwired software was a memory manager. For the price you paid for the system you received AV cables, one controller, and the Gex game. The FZ-10 was not compatible with all of the FZ-1 upgrades.

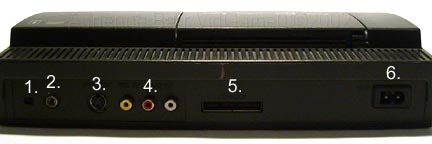

1. Channel 3/4
2. RF Output
3. S Video Output
4. AV Output
5. Expansion Bay
6. Power output

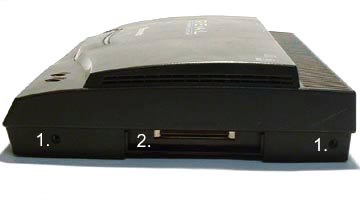

Right Side

1. Screw Mounts
2. Expansion Bay

Controller tip of the 3DO
3DO Mouse. FZ-JM1.

Because the 3DO had only one controller port, all controller daisy-chained off of Player 1's controller. Some controllers had plugs directly on the controller to plug in Player 2, some had second cords to plug into.

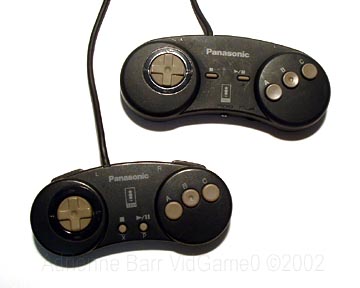

Two cosmetically different Panasonic 3DO controllers.


Bottom of Controller:

1. Headphone Jack
2. Volume Control

Top of Controller

1. Right Trigger Button
2. 2nd Player Controller Jack
3. Left Trigger Button

Logitec 3DO Controller. It has a double lead for the second player controller to plug into.
Interact's 3DO Turbo controller

Top of the Interact 3DO controller showing the auto-fire options:

Off / Semi-Auto / Auto

Power cord for FZ-10. AC 120V 60Hz 30W
AV Cables for the FZ-10

Paper snap style 3DO case.

Jewel Case style 3DO game.
